Name: SIMRIG SR2
Brand: SIMRIG
Price: 4477 EUR
Availability: InStock
Rating: 5 (1 reviews)

Omschrijving
Specificaties
Beoordelingen

Omschrijving

The SIMRIG SR2 is the best selling motion system of SIMRIG. Equipped with industrial grade motors, a powerfull ECU, and a beefy power supply, the SIMRIG SR2 is professional grade equipment. All units are designed, built, and tested by SIMRIG in Sweden.

The SIMRIG SR2 can actuate a total load of 225 kg. This is 50 kg more than the SR1.

Though powerful and accurate its footprint is small. The actuators mount directly to your rig. The ECU easily fits under your seat. The power supply is fanless and can be tucked away next to your computer. The SIMRIG SR2 will enhance your rig without increasing its size too much.

The motion system is accompanied by SIMRIG Control Center without any extra cost or subscription fees. The software is interpreting the motion of the simulated vehicle and use that data to move your rig accordingly. It supports all major simulation titles.

Installation is plug-and-play. Attach the actuators, ECU, power supply, and emergency stop. Connect a few cables. Install the software. Then you are ready!

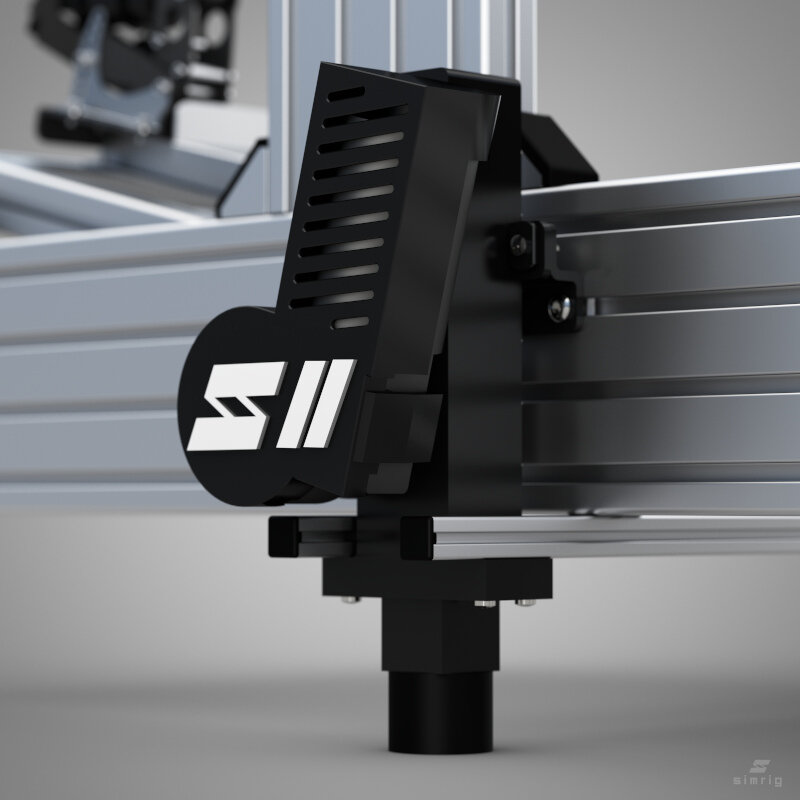

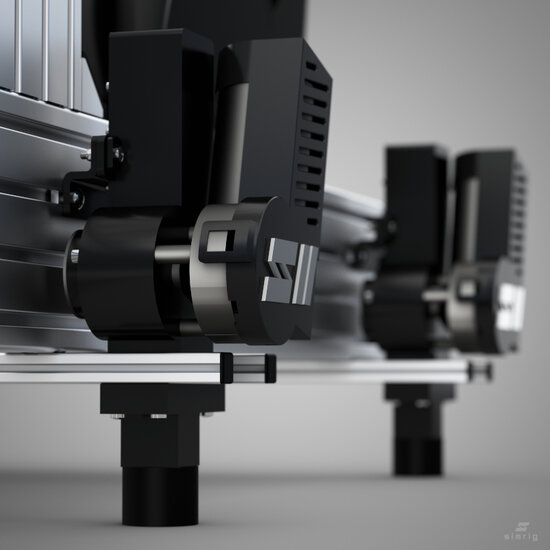

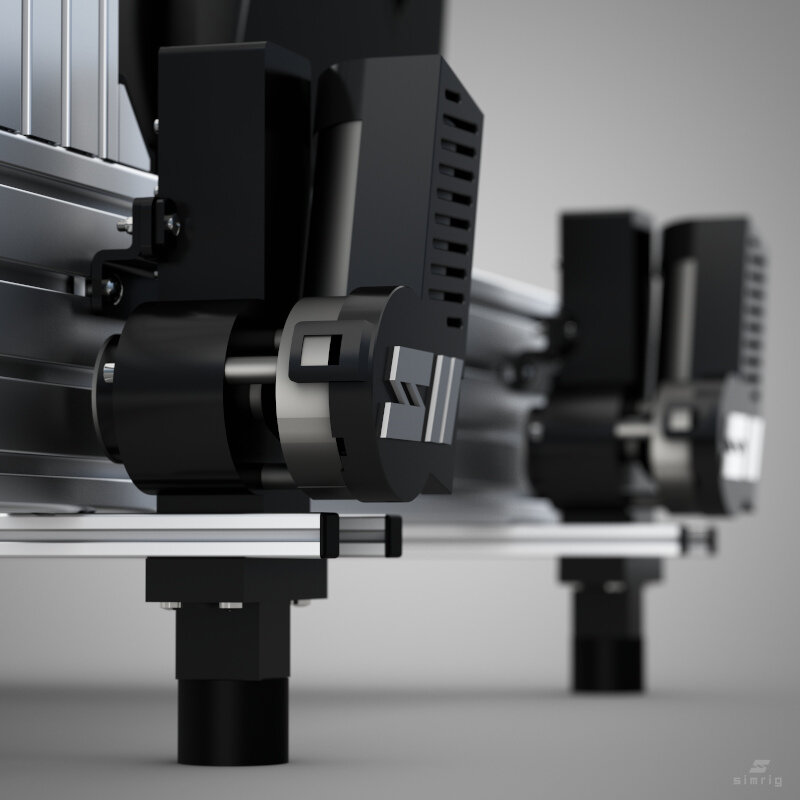

MOUNTING

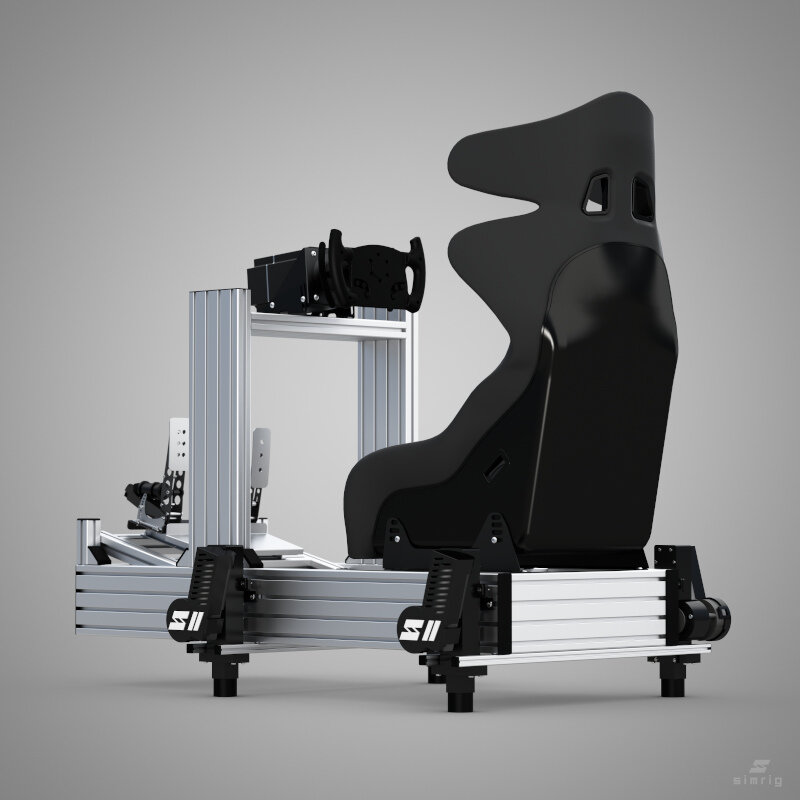

The SIMRIG SR2 is compatible with aluminum rigs built using 80x40, 120x40, and 160x40 mm aluminum extrusions. Other sizes are available on request.

The choice is yours between two different mounting systems. Choose either 20x20 mm aluminum profiles or EasyBrackets. These and four four plastic brackets are required to attach the SIMRIG SR2 to an aluminum rig. Everything you need is included.

The plastic brackets are specifically designed to attach to either 80x40, 100x40, 120x40, or 160x40 mm rigs. These rigs differ in height and therefore require a matching bracket. Brackets for your chosen rig are included in the box.

PERFORMANCE
The SIMRIG SR2 is powered by a 750 W power supply -- more than enough power to react quickly to motion commands. This power supply attaches to your wall socket using a standard power cord.

The system latency is negligible at only 7 milliseconds. We have optimized the software to make sure motion queues are on-time every time.

The maximum load is set to 225 kg for best performance and longevity. The maximum load includes the rig, the driver, peripherals, and additional weight actuated by the SIMRIG SR2 motion system. This is 50 kg more than the SIMRIG SR1.

Even with heavy 160x40 mm rigs (that weigh 65 kg) the SIMRIG SR2 can accommodate a driver, a seat, and peripherals that weigh up to 160 kg while still keeping the weight below the 225 kg limit.

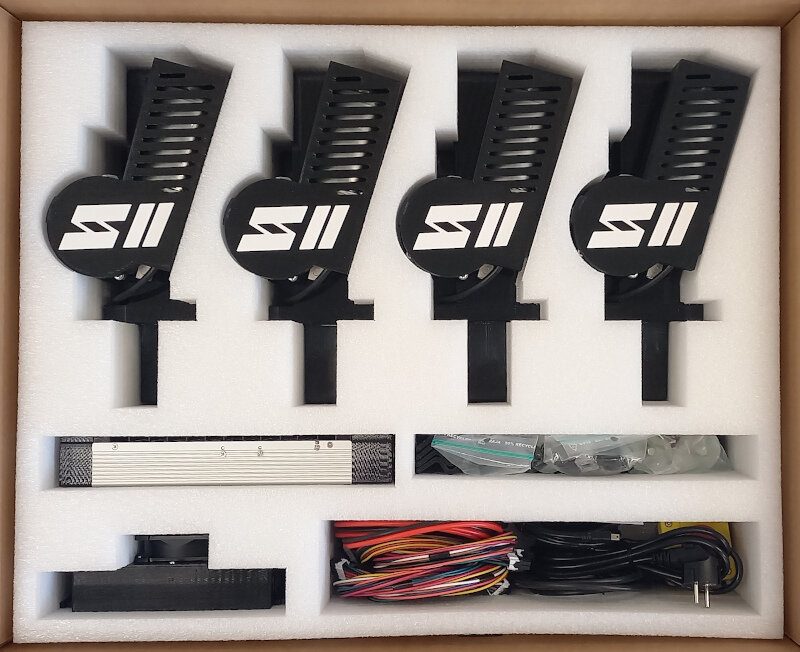

IN THE BOX
A complete motion system:

4x SIMRIG SR2 Linear Actuator
1x SIMRIG SR2 Electronic Control Unit
1x 750W Power Supply (100-240 V at 50-60 Hz)
1x Emergency Stop
4x Linear Actuator Cable (0.8m)
1x Power Cable for ECU (2m)
1x Power Cable (C13)
1x USB Cable (3m)
1x SIMRIG Control Center (download)
Assorted screws and T-nuts
And mounting brackets for your rig.

TECHNICAL SPECIFICATION
Max load *1                      225 kg
Travel                                  70 mm
Speed                                  100 mm/s (at max load)
Accuracy                             0.1 mm
Latency                               7 ms
Power *2                            750 W
Interface                             USB 2.0 (Mini-B)
Operating system             Windows 10/11 (64-bit)
Mounting *3                     Aluminium rig 40x40, 80x40, 120x40, 160x40 mm and others
Cooling *4                          Automatic fan
Emergency stop                Included
Package dimensions         74 cm x 58 cm x 19 cm
Package weight                 22 kg

Including driver and rig
Power supply operates around the world (100-240 V, 50/60 Hz)
See documentation for details regarding mounting options
Fan actives only when necessary

Specificaties

Max load

225 kg

Power supply

750 W

Travel

70 mm

Speed

100 mm/s (at max load)

Accuracy

0.1 mm

Latency

7 ms

Interface

USB 2.0 (Mini-B)

Operating system

Windows 10/11 (64-bit)

Mounting

Aluminium rig 80x40, 100x40, 120x40, 160x40 mm and others

Beoordelingen

Bekijk hieronder alle reviews van onze klanten

5,0

op basis van 1 Beoordelingen

Thomas Beghain

Je les utilise maintenant depuis 4 mois et franchement ça change l'immersion de votre expérience simracing.
On gagne pas vraiment de chrono car le temps de s'habituer ensuite vous pourrez ressentir tout de la voiture que ce soit au niveau du ressenti de la piste aux limites que vous pourrez atteindre avec votre voiture. Je recommande ce produit
